Description

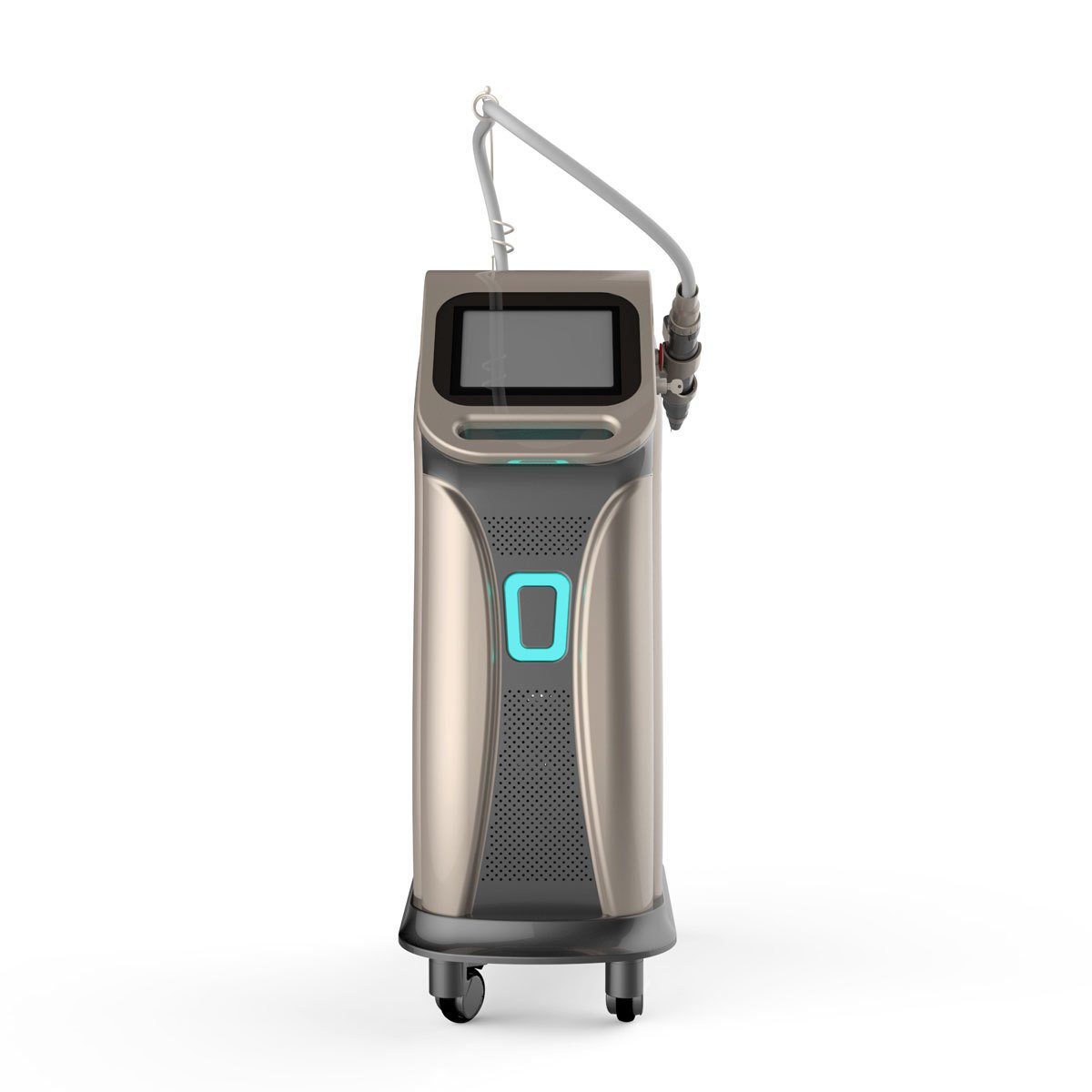

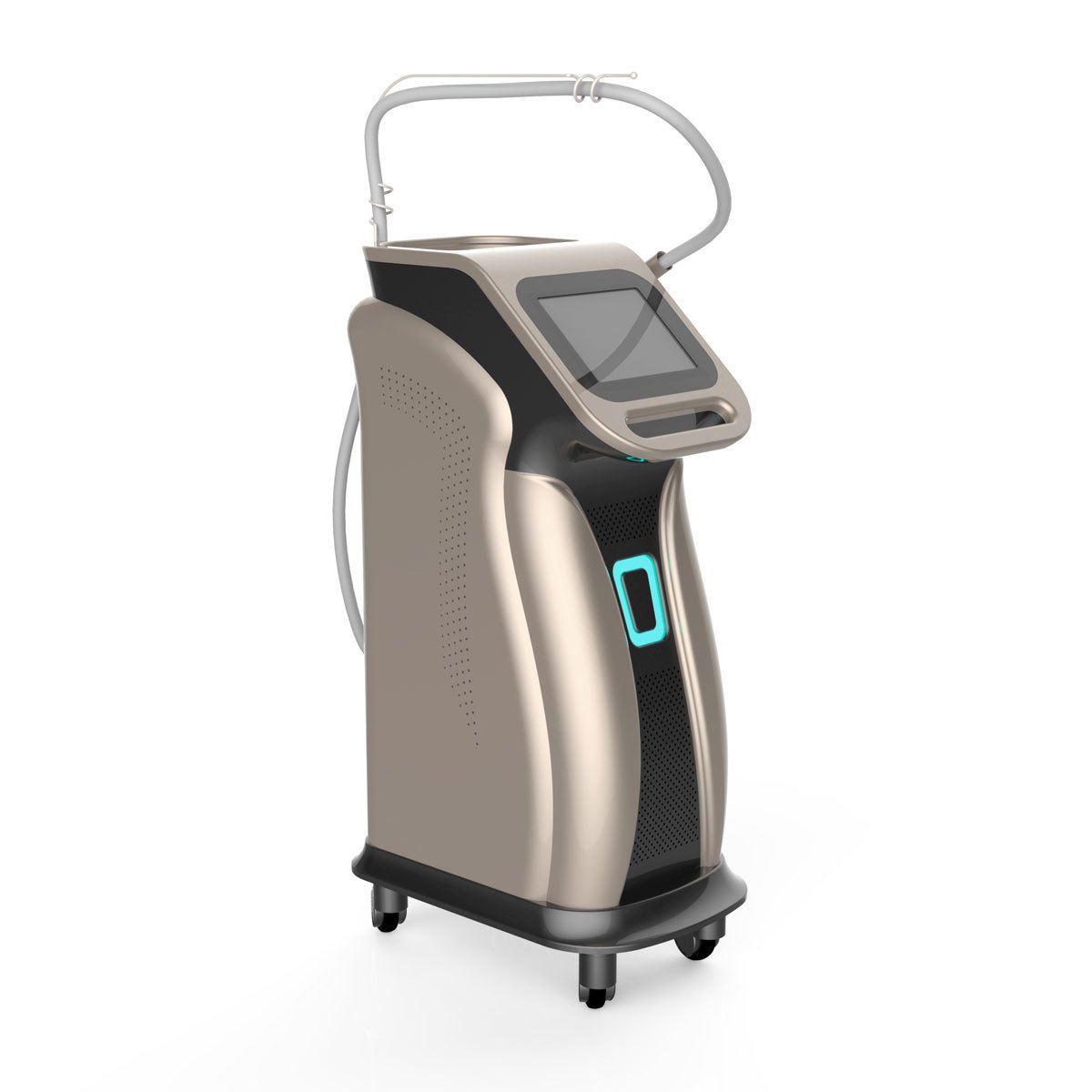

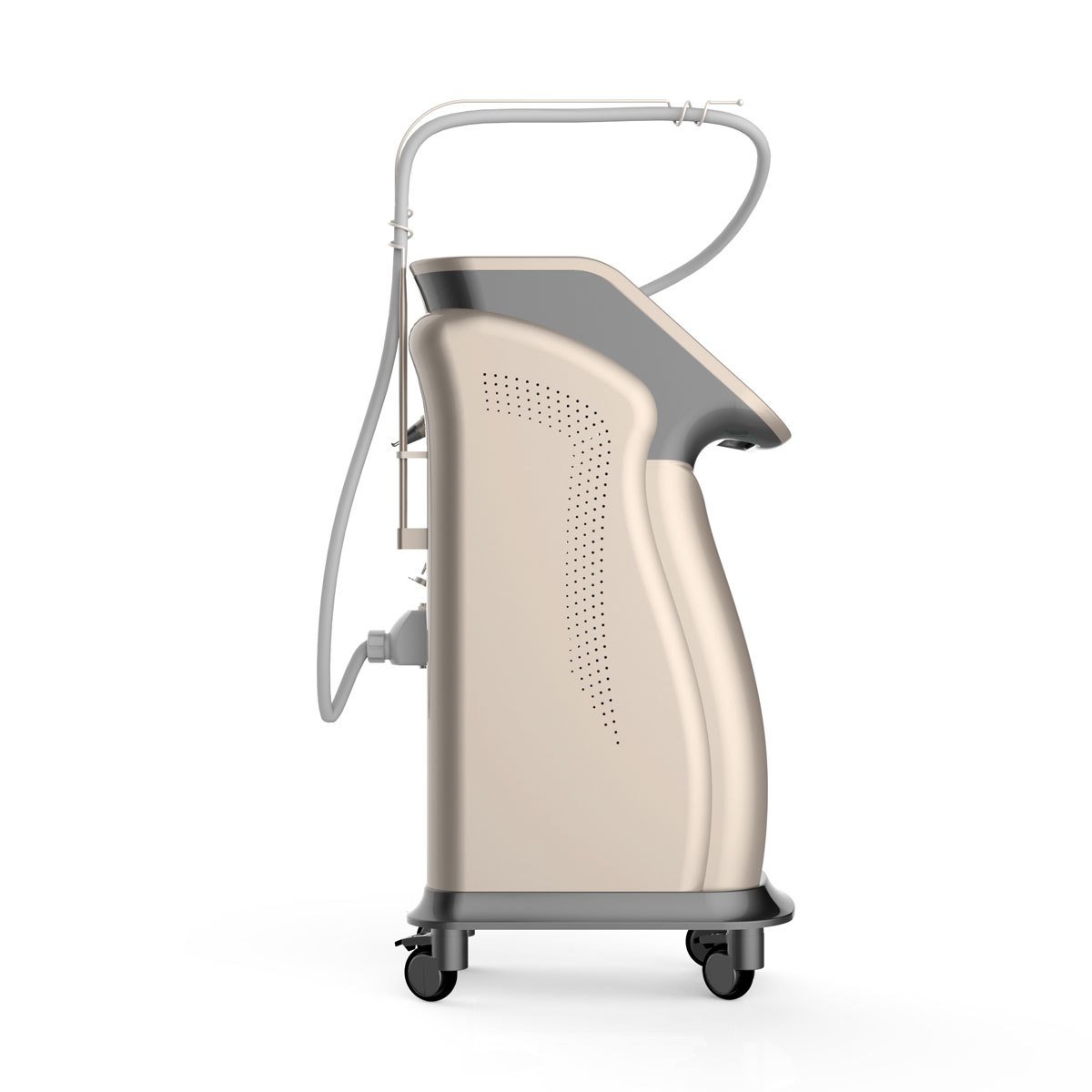

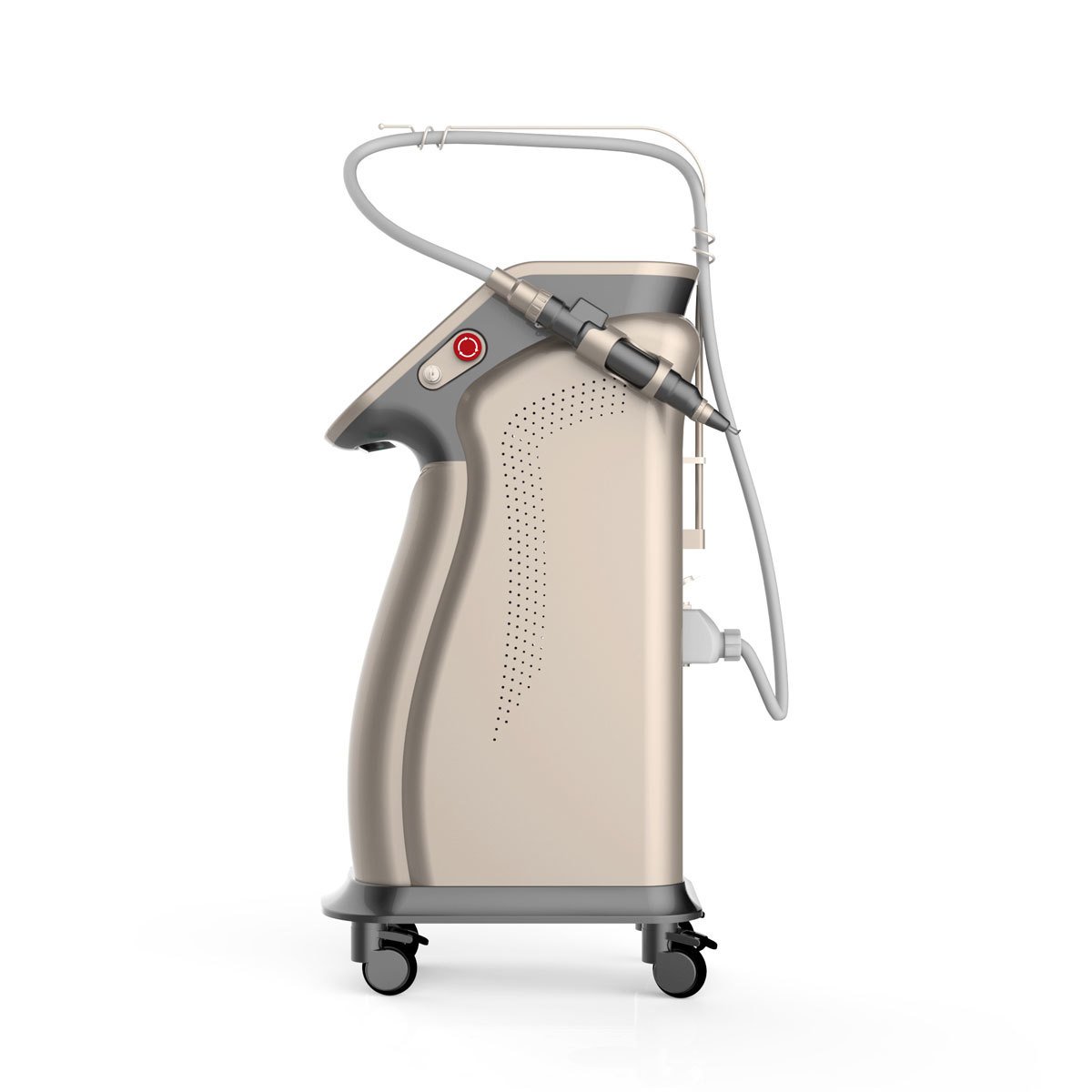

RICA Laser Vertical Nd YAG Tattoo Removal System

The RICA Laser Vertical Nd YAG Tattoo Removal System is equipped with advanced nanosecond Q-switched laser technology designed to safely and effectively eliminate unwanted tattoos and pigmentation. The high-energy laser pulses fragment pigment particles into ultra-fine pieces, which are then naturally cleared by the body’s metabolic processes. This enables effective treatment of both epidermal and dermal pigmentation with minimal skin damage.

Treatment Principle

The Q-switched Nd YAG laser delivers high-energy pulses that penetrate the epidermis and selectively target pigment deposits in the dermis.

Nanosecond laser pulses cause rapid expansion of the pigment particles, breaking them into microscopic fragments.

The fragmented pigment is gradually absorbed by phagocytes and eliminated through the body’s lymphatic and metabolic systems.

With each treatment session, pigmentation becomes progressively lighter until it is significantly reduced or completely removed.

Features

Effective removal of tattoos in all colors

Treatment of chloasma, café-au-lait spots, freckles, sunburn pigmentation, age spots, and nevus of Ota

Supports skin brightening, fine line improvement, and carbon peeling treatments

Safe and precise removal of birthmarks and various pigmentation disorders

Handpiece Introduction

532nm Wavelength
Targets red, orange, and brown pigments with strong exfoliation and surface pigmentation correction

1064nm Wavelength
Designed for black and blue pigments with deeper penetration; also used with the carbon peeling handpiece

Carbon Peeling Handpiece
Specialized for deep cleansing, pore tightening, and skin rejuvenation

Machine Highlights

Advantages

Lightweight Design
Compact structure and low weight allow easy transportation and reduced logistics cost

High Performance
Ultra-short pulse duration (4ns), high peak energy (up to 940mJ), and long operational lifespan

Ergonomic Handpiece
Cost-efficient, well-balanced laser handle designed for precise clinical control

Efficient Cooling System
Built-in high-power air and water cooling system supports continuous operation

Color Touch Display
10.4-inch TFT color touchscreen for intuitive operation and parameter adjustment

User-Friendly Operation
Adjustable spot size ensures ease of use and treatment flexibility

High Precision
Laser generator integrated within the handpiece minimizes polarization and enhances energy stability

Specifications

Type: Q-Switched Nd YAG Laser System

Handpieces:
Focus Head ×2 (1064nm & 532nm)
Carbon Peeling Handpiece

Laser Wavelengths: 1064nm & 532nm

Pulse Width:
532nm: 4ns
1064nm: 4.5ns

Energy Output: 100–2000mJ (1064nm & 532nm)

Frequency: 1–10Hz

Display: 10.4-inch Color Touch Screen

Input Power: 600W

Laser Power: 300W

Cooling System: Air + Water Cooling

Voltage:
110V ±10%, 60Hz
220V ±10%, 50Hz
