Description

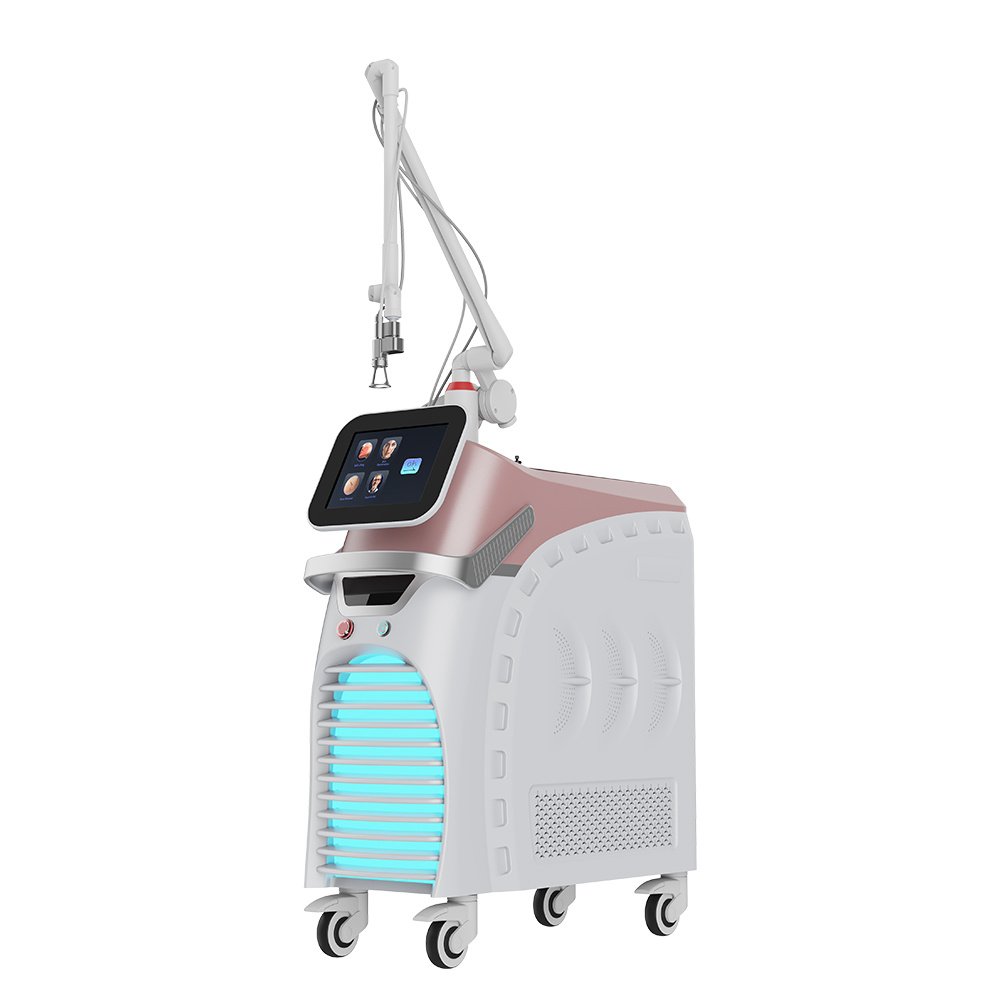

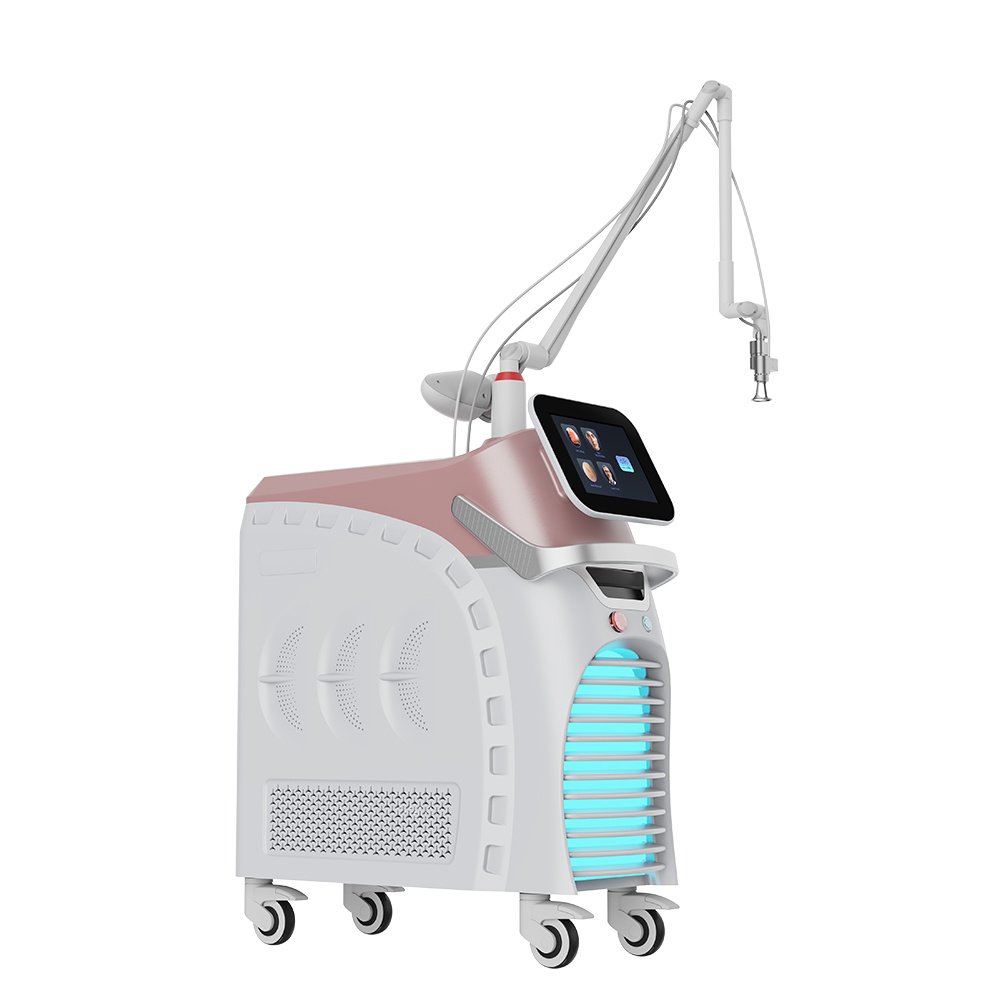

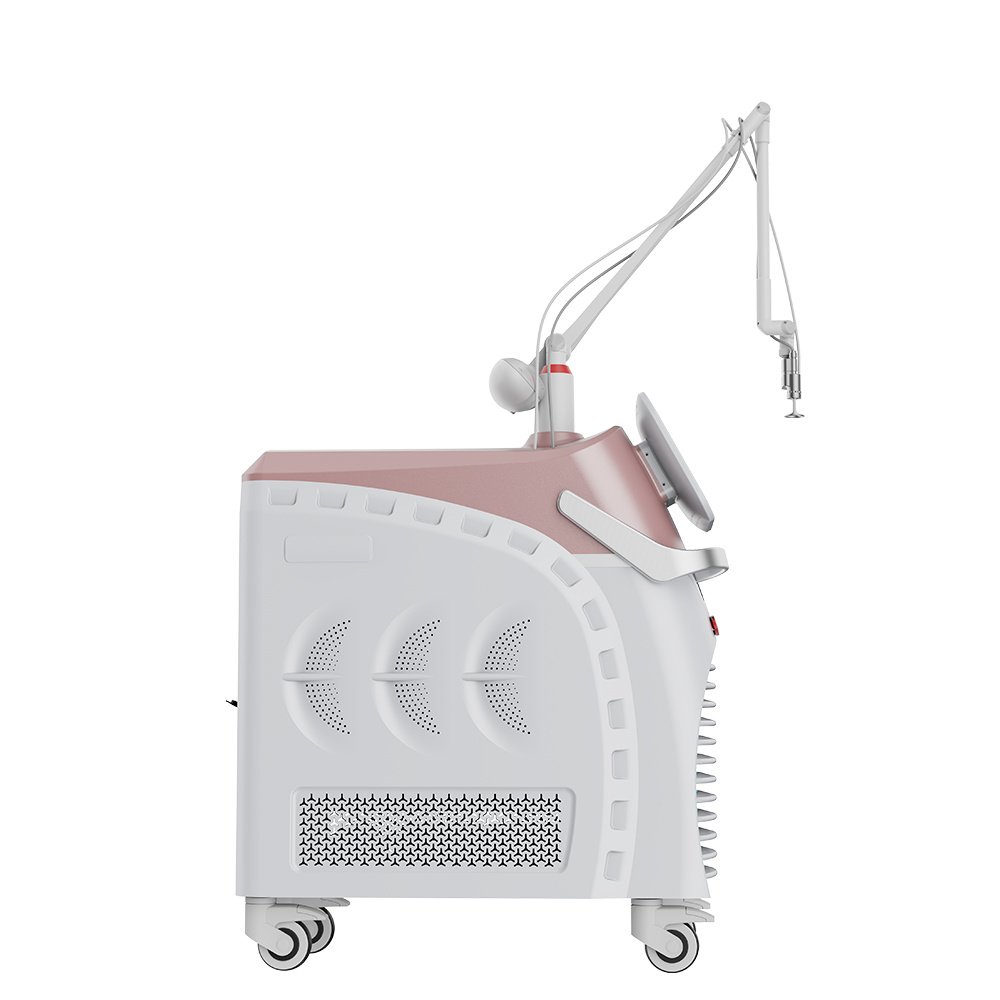

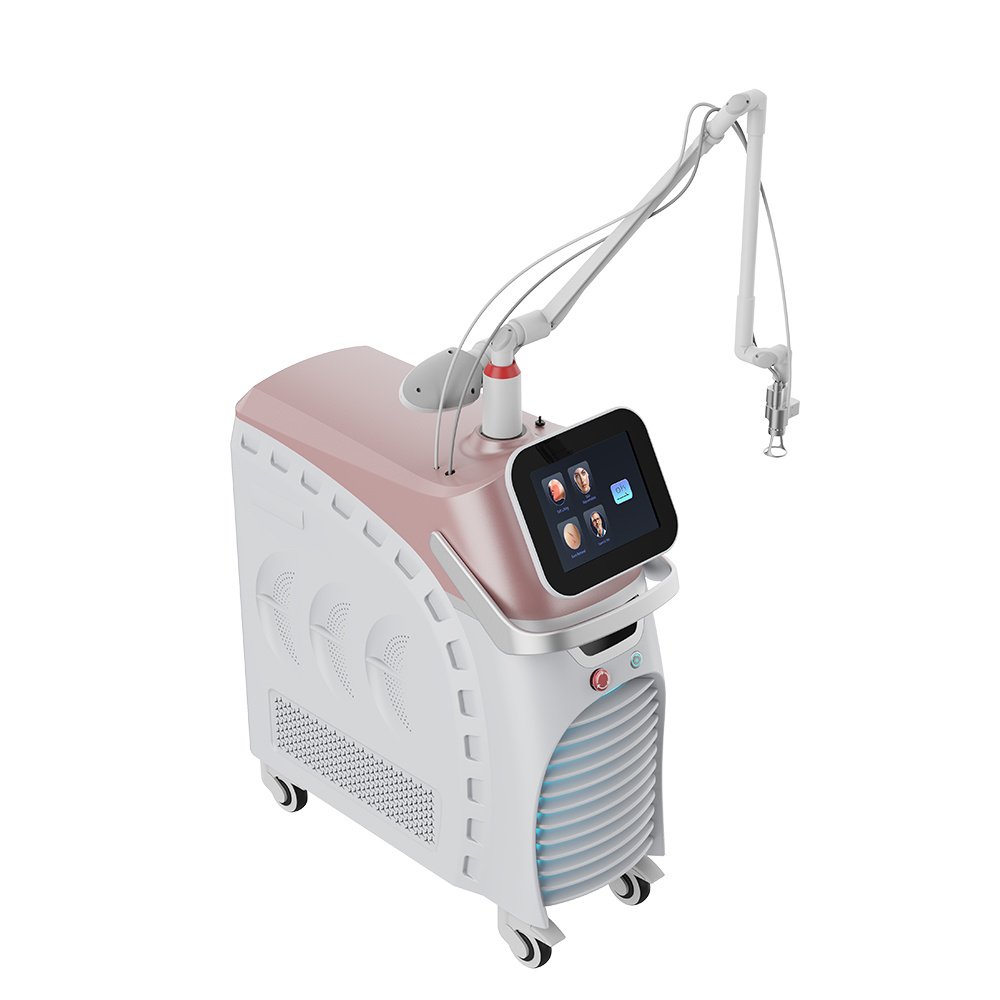

2940nm Erbium YAG Laser

The 2940nm Erbium YAG Laser is a solid-state laser system designed for skin resurfacing, skin rejuvenation, lesion removal, and fractional applications. It delivers precise treatment with minimal discomfort and low thermal damage to surrounding tissues.

Treatment Principle

Therapy of 2940nm Erbium YAG Laser

The Er:YAG Laser (Wavelength: 2940nm) operates in the mid-infrared spectrum and is highly effective for dermatological treatments. The 2940nm wavelength is strongly absorbed by water within the skin, allowing controlled heating and evaporation of the superficial epidermal layer. This enables precise tissue removal with minimal thermal injury (Thermal Damage Range: 30–50μm).

As a result, the laser is ideal for superficial epidermal ablation without affecting the dermis. Post-treatment recovery is rapid, with minimal downtime required.

Indications

Skin Resurfacing: Reduction of wrinkles and scars

Skin Rejuvenation: Improvement of acne scars, fine lines, and wrinkles

Lesion Removal: Effective removal of skin tags, moles, warts, and selected benign lesions

Fractional Applications: Reduction of moderate photoaging, fine lines, and uneven skin texture

Reduction of Jowl Fat and Nasolabial Folds: Skin tightening around the mouth and lower face

Advantages

1. Precise micrometer-level tissue evaporation ensures rapid skin recovery after treatment.

2. Minimal thermal damage to surrounding tissues reduces the risk of scarring and post-inflammatory pigmentation.

3. Suitable for both epidermal and deeper dermabrasion procedures.

4. Minimal pain during treatment, with no requirement for epidermal anesthesia.

5. User-friendly interface provides preset parameters based on treatment type and body area; beginners can operate easily, while professionals can save customized settings.

6. Precision fractional handpiece minimizes skin trauma and accelerates healing.

7. Integrated professional dehumidifier reduces laser energy loss during transmission and extends laser lifespan.

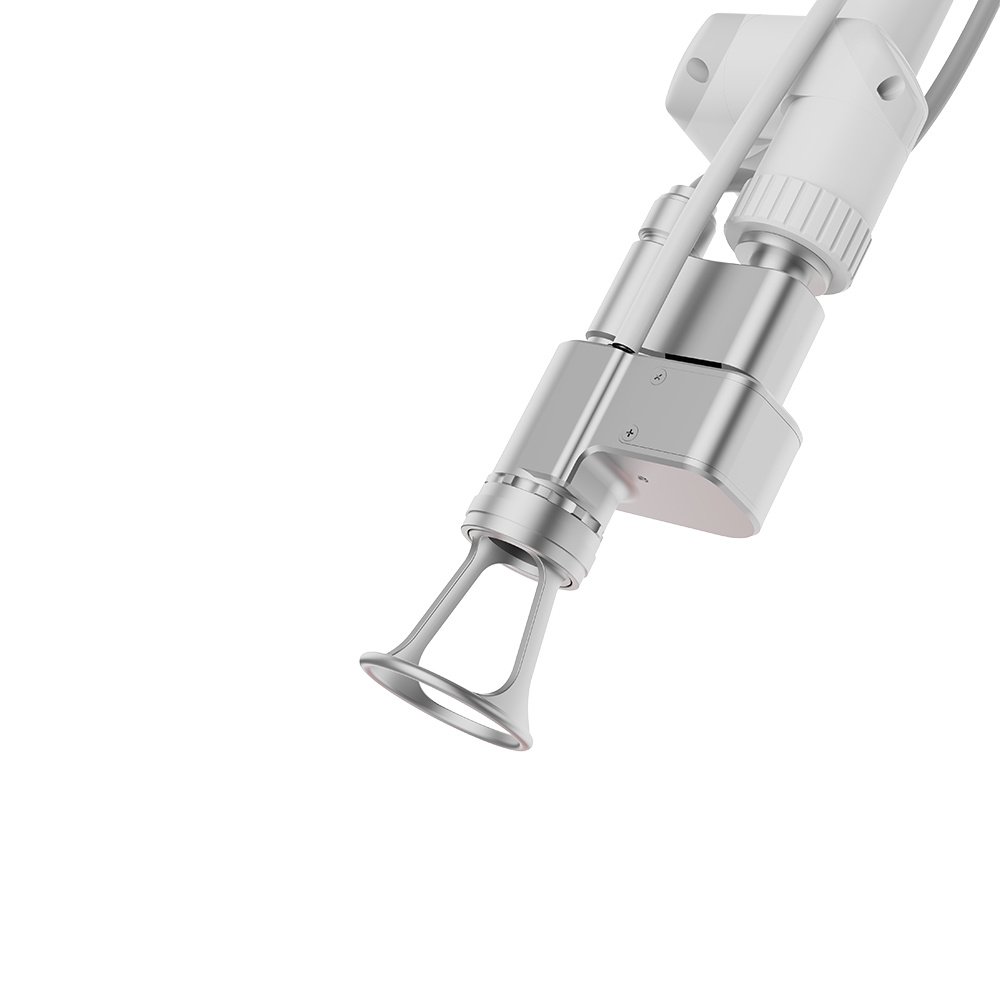

Introduction of Machine Handles

Collimated Handle

585nm Handle
The 585nm wavelength is primarily used for blue pigmentation indications.

650nm Handle
The 650nm wavelength is applied for green pigmentation treatments.

Specifications

Laser Type: Er:Yttrium Aluminum Garnet

Wavelength: 2940nm

Pulse Width: 100–1500μs Adjustable

Maximum Repetition Rate: 1–10 Hz Adjustable

Energy: 200–300 mJ Adjustable

Spot Size: 2–7 mm Adjustable

Power Requirement: 220V, 10A, 50/60Hz

About Treatment

1. Patients with highly sensitive skin are not recommended for this treatment.

2. Patients who have experienced sunburn within the past one month are not eligible.

3. Patients who have undergone other skin treatments within one month should avoid this procedure.

4. Patients with active skin diseases are not suitable candidates.

5. Skin should be kept clean and dry prior to treatment.
